NV-Verlag Seekarten (2017-2020) Bermuda Islands, Passages US East Coast, Caribbean, Europe

Bermuda Islands, Passages US East Coast, Caribbean, Europe

nv-charts • Reg. 16.1 Bermuda Islands
•     CD mit elektronischen Seekarten und Navigationssoftware
•     4 Übersegler, 4 Revierkarten, 4 Details
•     GPS Wegepunkte und empfohlene Kurse
•     mit App Karten zum sofort Download!

Practical to use and accurate in the information and data published: This is the basic concept with which we have developed the nv-charts.

•     this Chart Region is based on BA data with a new layout, clear cartography and international chart standards
•     depths and heights are charted in meter
•     arrow-symbols show buoyage direction
•     unique color differences, blue for the 2 meter dephts, and green for exposed tidal areas
•     contour lines for 5 and 10 meter depths
•     under water reefs are clearly marked with a light green color and the reef above water in darker green
•     variable shoals marked in grey-blue

•     lighthouses illustrate their light characteristics for better identification
•     seaworthy chart layout - perfect chart flow from one chart to the next
•     standardized chart scales - passage charts 1:340,000 - 1:7,500,000  coastal charts 1:90,000 and detail charts 1:20,000 or less
•     waypoints with latitudes and longitudes for GPS input
•     arrow-symbols show buoyage direction
•     tide information on each chart

Passage Charts

C1 North Atlantic Ocean with General Surface Current Circulation 1: 7,500,000
C2 Caribbean to Bermuda Islands 1: 3,000,000
C3 US East Coast · Bermuda Islands · Caribbean 1: 6,000,000
C4 Newport to Bermuda 1: 3,000,000

Coastal Charts

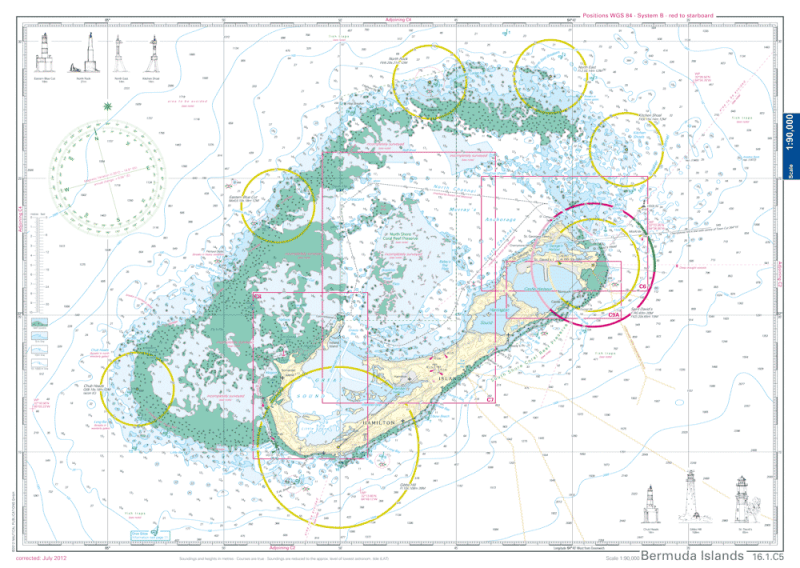

C5 Bermuda Islands 1: 90,000
C6 St. George´s Island 1: 20,000
C7 North Channel to Hamilton 1: 30,000
C8 Great Sound 1: 20,000

Details

C9A Castle Harbour 1: 20,000
C9B St. George´s Harbour 1: 12,000
C10A Hamilton Harbour 1: 12,000
C10B Ireland Island 1: 10,000
